Electrons on Liquid Helium
Scalable electron spin qubits in a pristine environment
Electrons floating above the surface of liquid helium have long been used as a system for condensed matter physics research. Liquid helium has an exceptionally uniform and clean surface, resulting in extremely high electron mobility compared to electrons in solids. It is also possible to trap a large number of electrons under nearly identical, uniform conditions. However, a drawback of using a liquid substrate is that the surface fluctuates over time.
Strong Coupling Between Plasmons and an LC Resonator

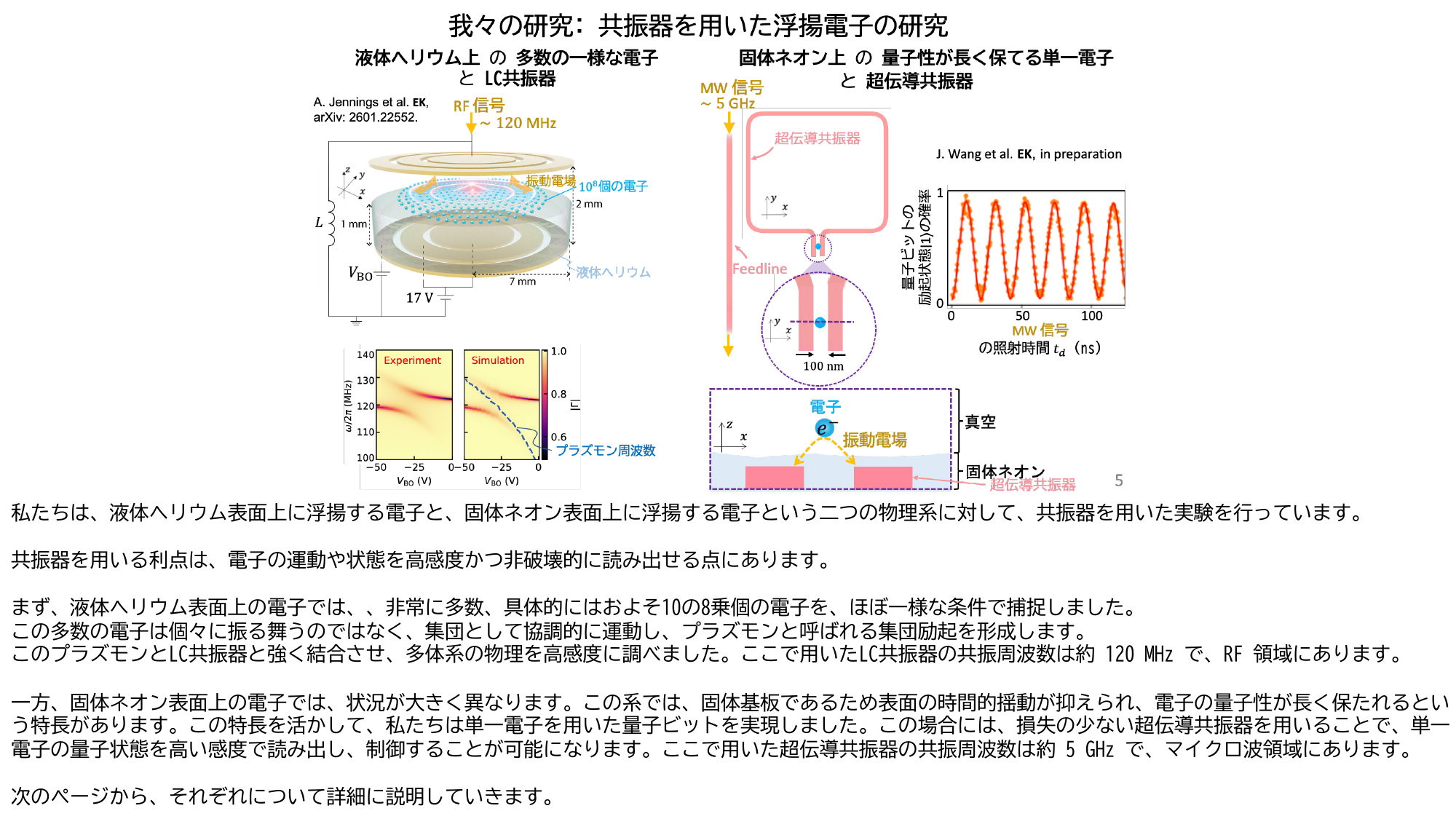

Three concentric ring electrodes are placed facing each other with a 2 mm gap to form a capacitance. The bottom electrode is immersed in approximately 1 mm of liquid helium, and 10\(^8\) electrons are floated on its surface. A superconducting spiral inductor is connected to the top electrode to form a low-loss LC resonator.
The electrons are not completely independent — they interact with each other via Coulomb interactions. As a result, the electrons undergo collective oscillations in the x and y directions, forming a quasiparticle known as a localized plasmon, which couples to the oscillating electric field driven by the RF signal. We observed an anti-crossing between the plasmon frequency and the resonance frequency of the LC resonator.
Plasmons are widely observed in metallic nanoparticles and other material systems, with a broad range of applications. However, in electron systems within solids, scattering and losses are large, making clean resonance responses difficult to observe. In contrast, electrons floating in vacuum form an extremely clean physical system, enabling the observation of low-loss plasmon resonances in quantitative agreement with simulations.
Future Directions
Leveraging the exceptionally clean nature of this electron system, we aim to develop it into a simulation platform for pure many-body physics that can be directly compared with theory.
Key topics:
- Strong coupling experiments between plasmons and LC resonators
- Development as a simulation platform for many-body physics
- High-sensitivity readout via superconducting spiral inductors
